Product Description
Features:
Share one set of keyboard, mouse and monitor with four PCsSupport auto switching to monitor computers in a specified time interval.Available to use keyboard and mouse without any delay after switching inputs.It can support G/Sync and Free Sync at the same time.Support hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices.Support front panel buttons, IR signals, keyboard hotkeys and mouse gesture to control KVM to switch inputs.Support mouse and keyboard pass-through mode to improve KM compatibility.
FAQ：
Due to the slow loading of Win 7 driver, please wait patiently when connecting to Win 7 for the first time until the USB driver is loaded.
Black out for a few seconds when switching and then recover：This is a normal phenomenon, because the DP port does not have EDID, and the window information cannot be kept unchanged.
Attention：
For the safety request by some express company，the remote control is not equipped battery by default. Please install the button battery CR2025 before using it.
If you have any questions, you can email the manufacturer TESmart via Amazon. We will provide you with technical support and service within 24 hours.
G/Sync and Free Sync
Support G/Sync and Free Sync at the same time. It can solve the problems of screen tearing and freezing. Bring the ultimate gaming experience.

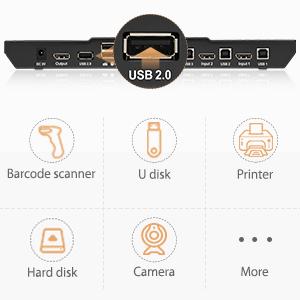

DP KVM Switch with USB2.0
Use a USB HUB connect to USB 2.0 port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer.
We recommend using the KVM’s USB2.0 port as a workaround if needed. USB2.0 port does not have emulation programming and KVM will not recognize hotkey commands. Please use a powered USB hub to expand USB connectivity.
Seamless switching
You can use the mouse and keyboard to switch without delay, improve your work efficiency and experience.
Inputs
2
2
2
4
4
4
Outputs
1
1
1
1
1
1
4K@60Hz
✓
✓
✓
✓
✓
✓
Switch Methods
Button & IR remote & Hotkeys & Mouse Gesture
Button & IR remote & Hotkeys & Mouse Gesture
Button & IR remote & Hotkeys & Mouse Gesture
Button & IR remote & Hotkeys & Mouse Gesture
Button & IR remote & Hotkeys & Mouse Gesture
Button & IR remote & Hotkeys & Mouse Gesture
CR2025 battery
Not included
Not included
Not included
Not included
Not included
Not included
Cables included
2*DP + 2*USB A/B
2*DP + 2*USB A/B
2*DP + 2*USB A/B
4*DP + 4*USB A/B
4*DP + 4*USB A/B
4*DP + 4*USB A/B
EDID
×
×
×
×
×
×
【4 PCs Shared with 1 Set Keyboard and Mouse】 Create a simplified workstation with 4 computers with this 4 ports Display Port KVM switch.
【4-Port DP KVM Switch with USB2.0 Port】 Supports connecting your usb 2.0 port device such as Scanner/USB driver/3D Printer/Monitor Camera.
【4×1 DP KVM Switch Support 4K Resolution】 Superior Video Quality. 3840×2160@60hz with 4K source and capable monitor. Support auto switching to monitor computers in a specified time interval.
【4K DP KVM Switch is Easy to Operate and Install】 Easily Switch Inputs. Keyboard hotkeys, mouse gestures, push button, or remote control (CR2025 battery is not included)
【★A Higher Level of Keyboard and Mouse Compatibility】 It supports keyboard and mouse pass-through mode (Semi-DDM USB), takes advantage of DDM (Dynamic Device Mapping) technology, compatible with more keyboard and mouse devices.
